Greater Mart

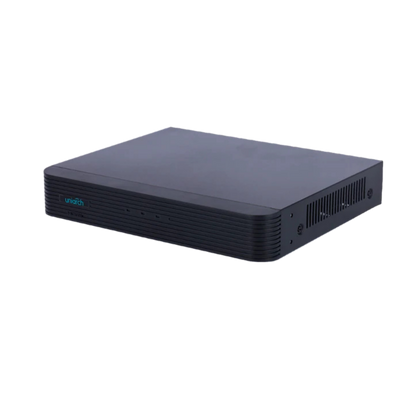

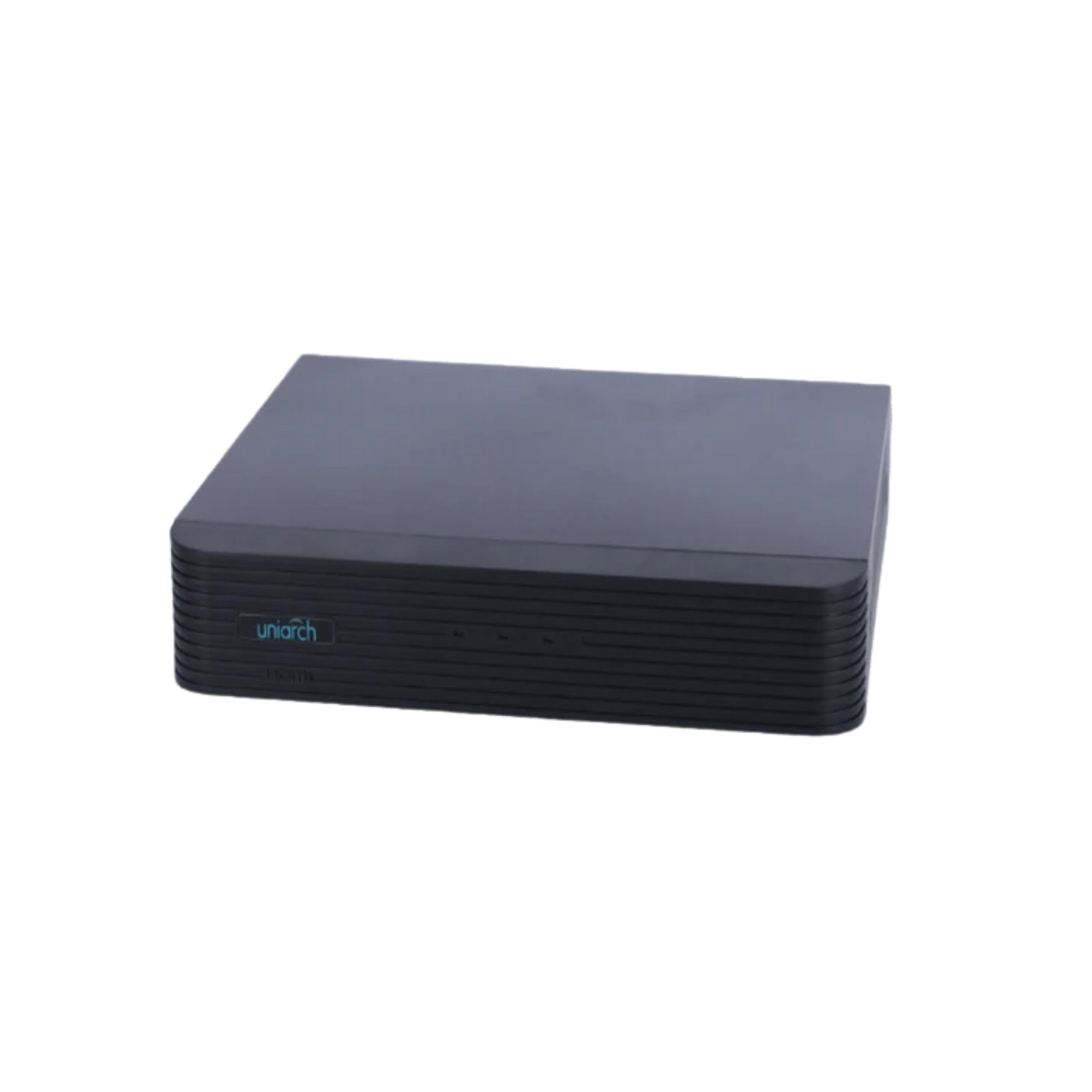

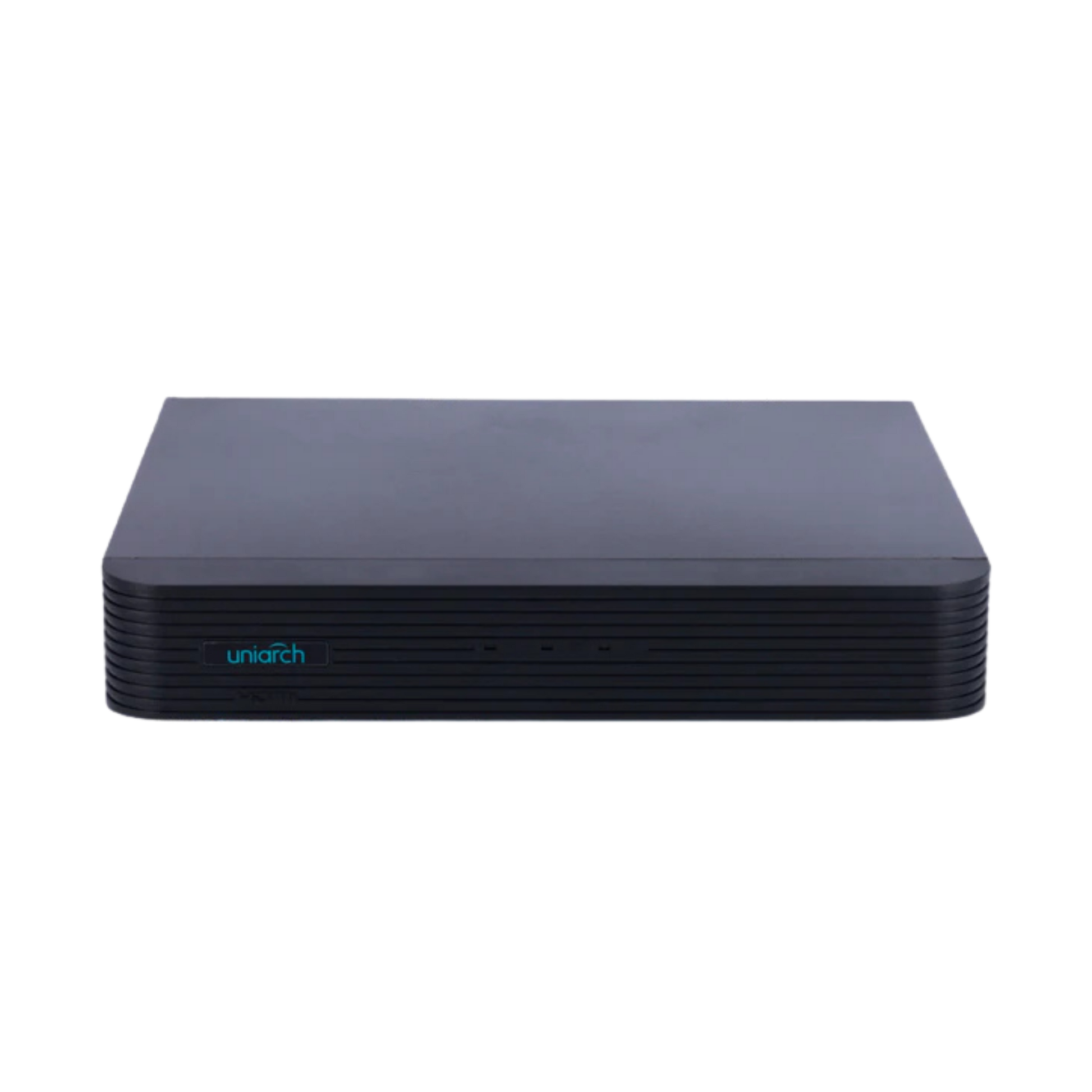

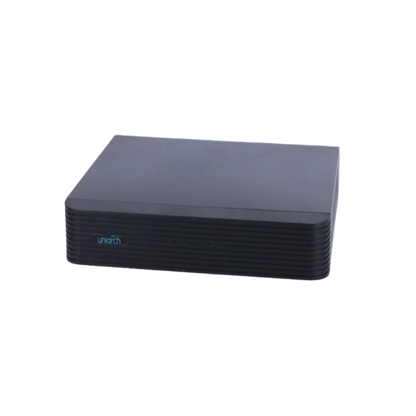

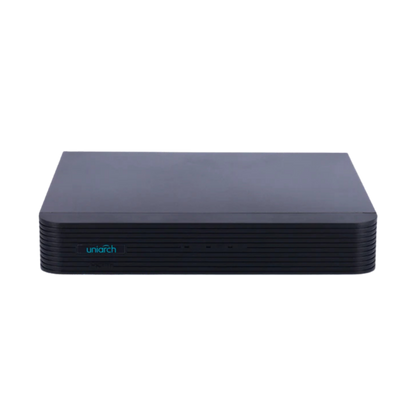

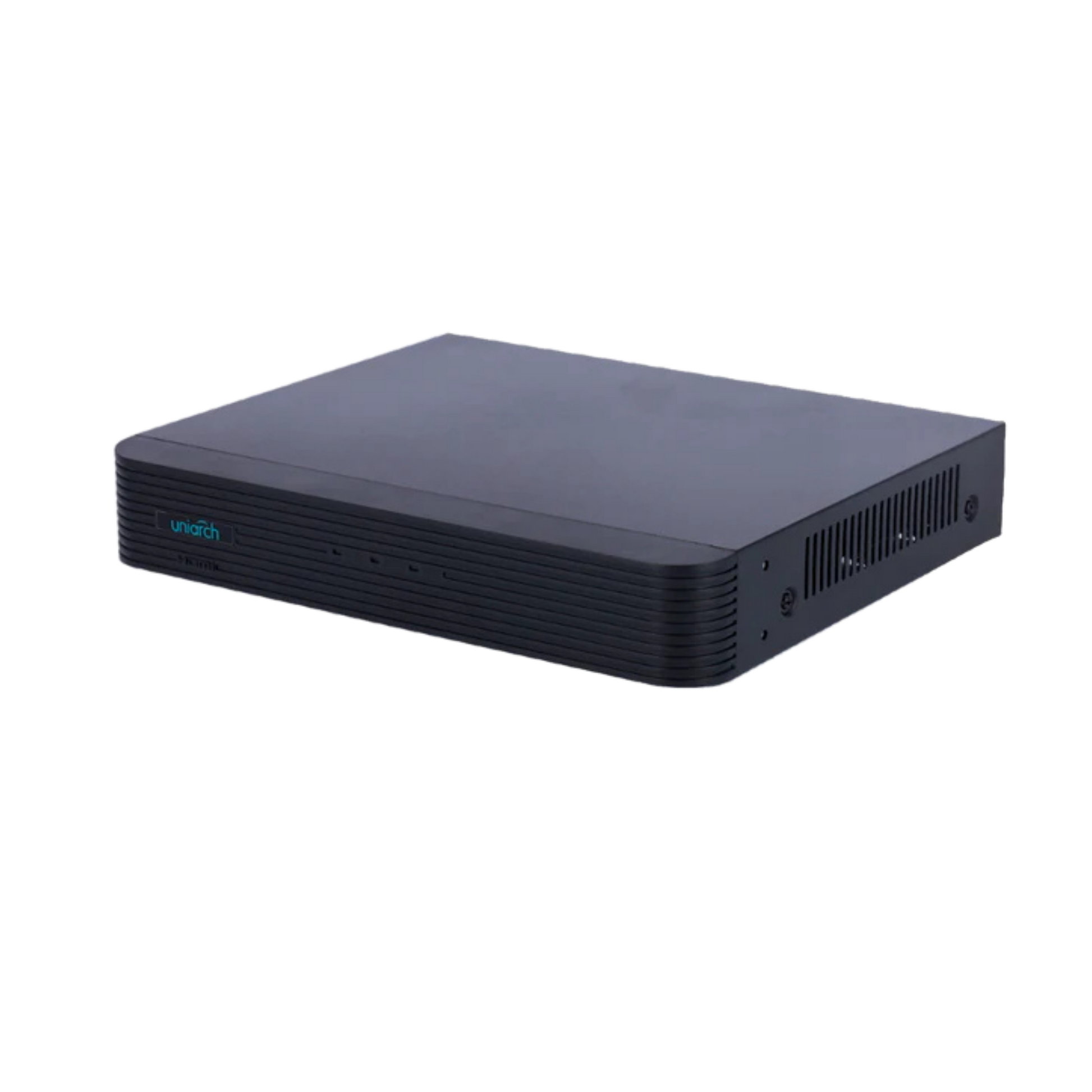

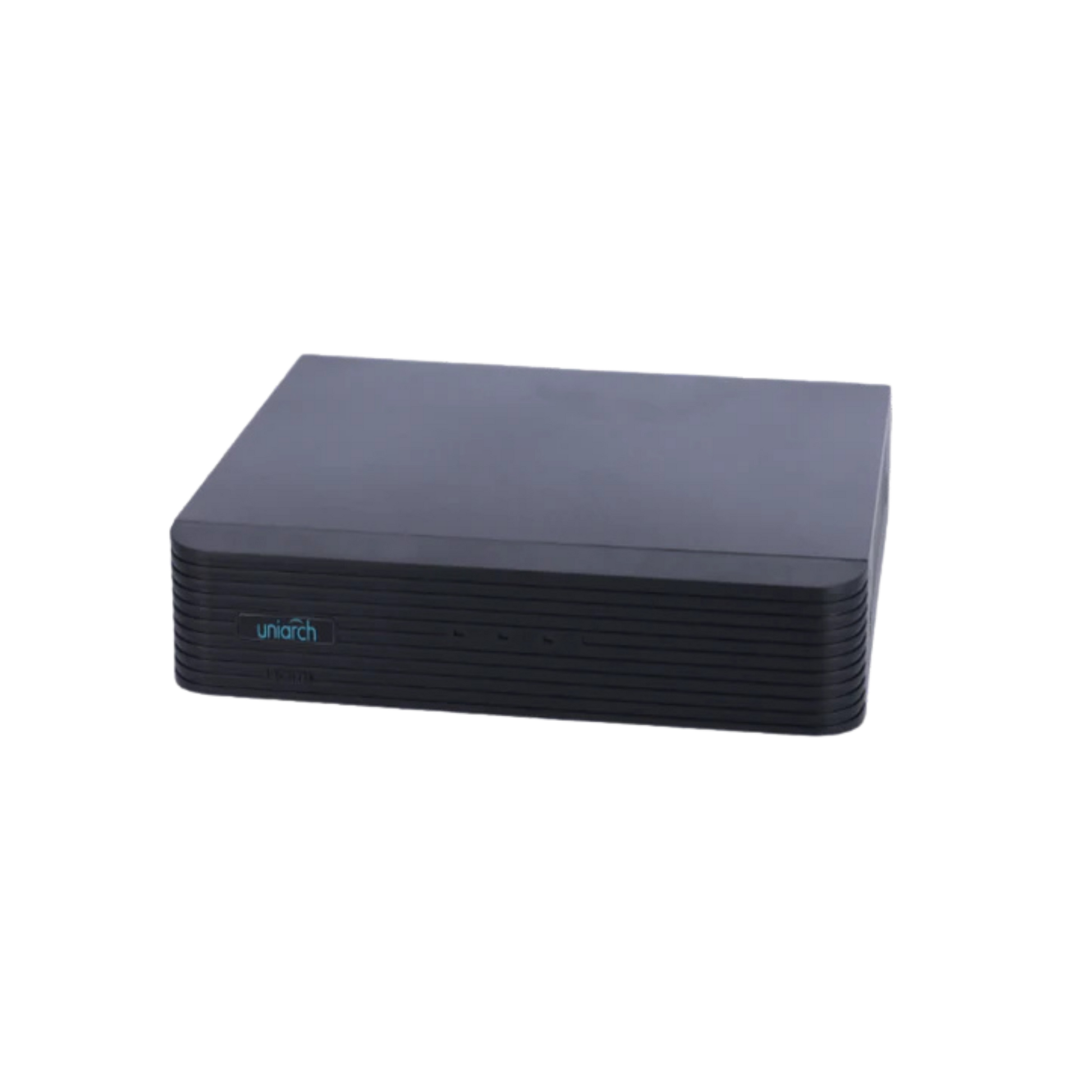

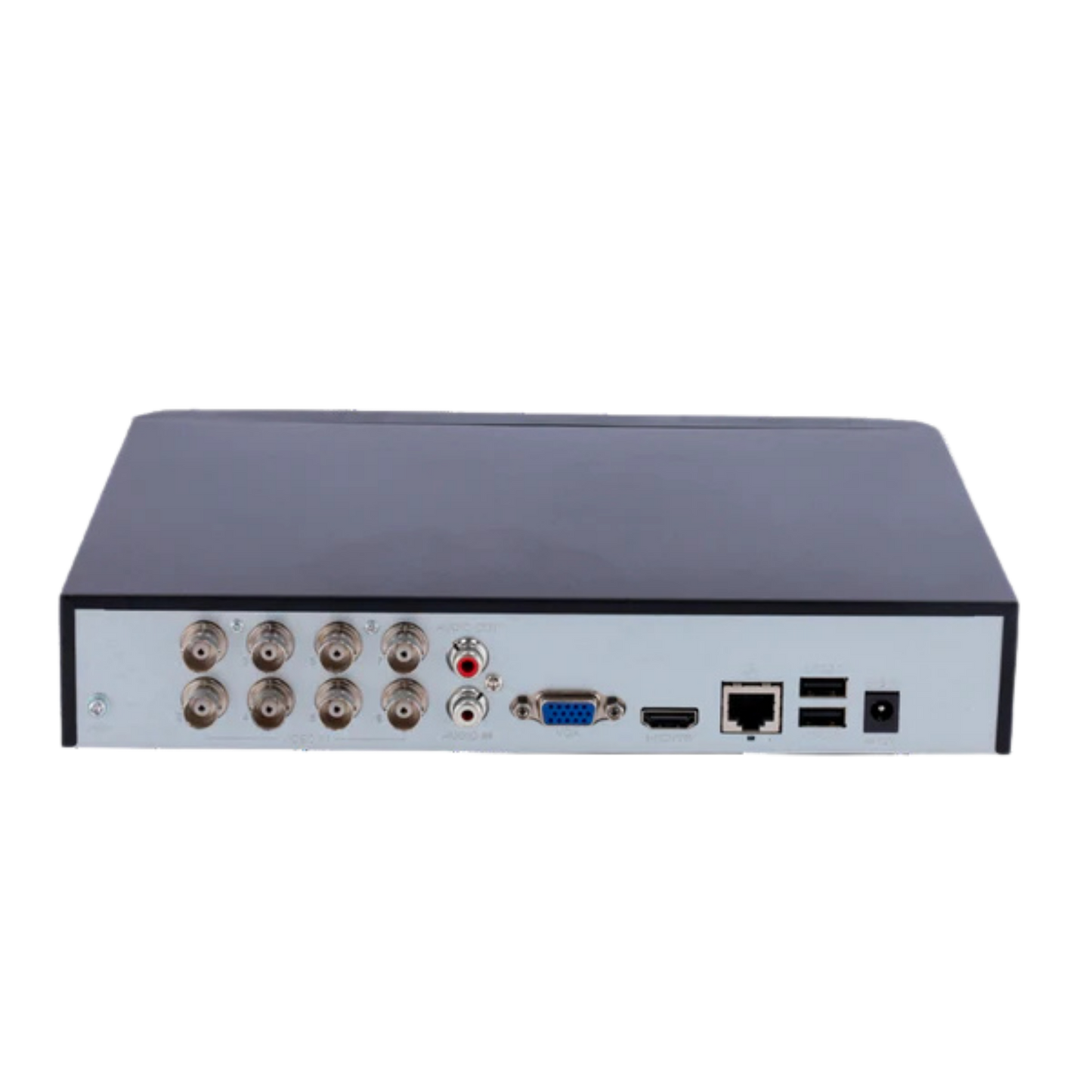

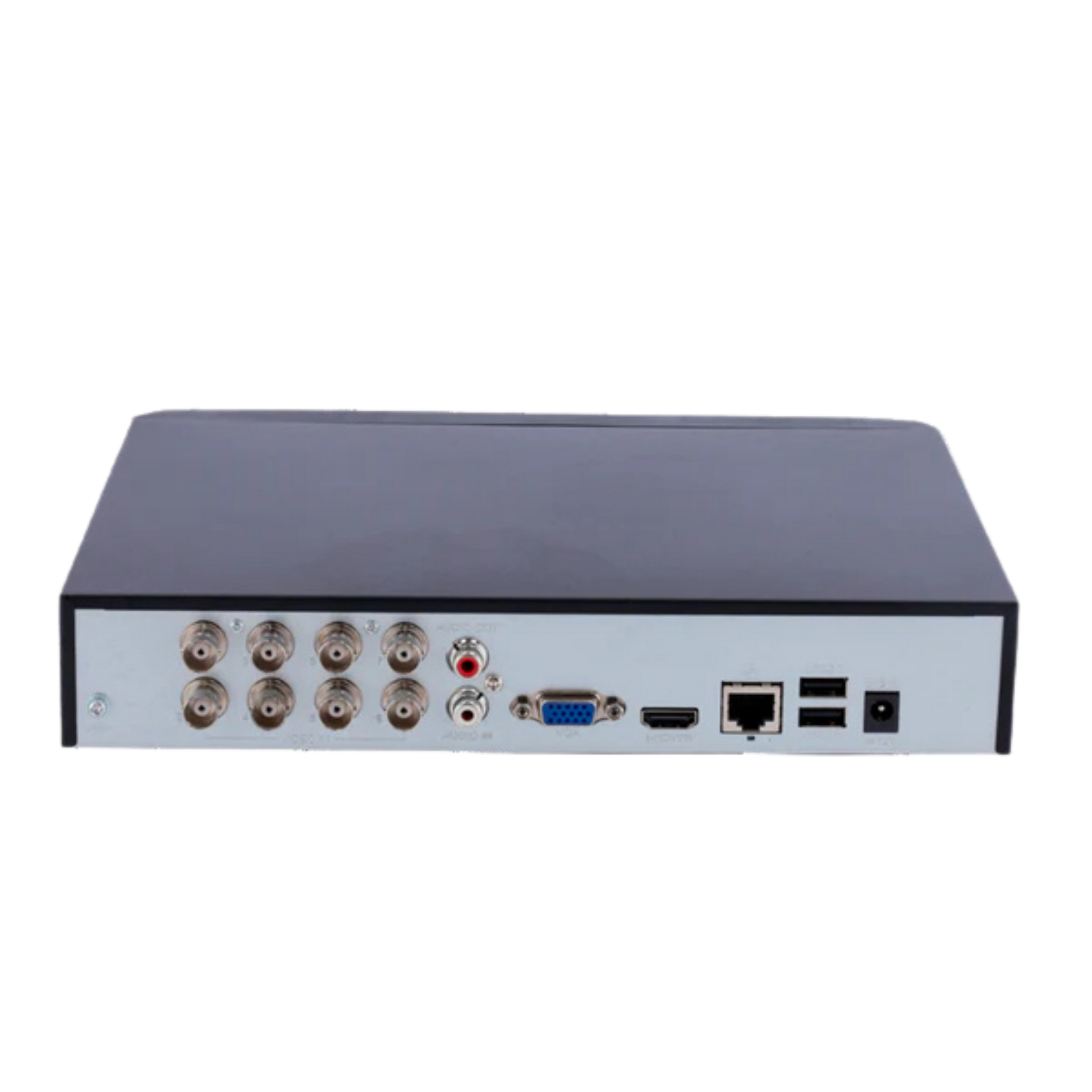

8 CH. XVR 108G3 UNV
8 CH. XVR 108G3 UNV
Regular price
Rs. 3,499.00
Regular price
Rs. 7,070.00
Sale price
Rs. 3,499.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
XVR-108G3
Key Features
Support H.265/H.264 video formats
Support audio over coaxial cable(only for TVI cameras)
Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access

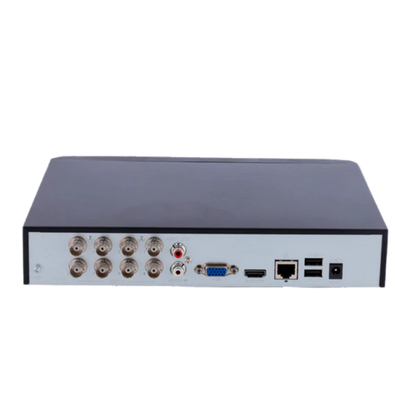

8-channel BNC input
Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
Long transmission distance over coaxial cable
Supports mainstream cameras of ONVIF and RTSP protocols
| Brand | Uniarch |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 8CH BNC |
| Hybrid configuration | Up to 8 IP Channels (4Mpx) replacing all the BNC channels |
| Video outputs | 1 HDMI Full HD, 1 VGA |
| Audio inputs | 1 Channel RCA |
| Audio outputs | 1 Channel RCA |
| Bidirectional audio | Reusing the audio input/output |
| Display resolution | 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| Maximum IP recording resolution | 4 Mpx |
| Analog cameras supported | TVI / AHD: 5MP@12FPS; 4MP@15FPS; 1080P@30FPS; 720P@30FPS CVI: 4MP@15FPS;1080P@30FPS; 720P@30FPS |
| Main Stream recording encoding | TVI/CVI/AHD: 5MPLite@6fps; 4MPLite@8fps; 2MPLite@15FPS; 2MP@8FPS; 720P@15FPS |
| Extra Stream recording encoding | D1@6FPS; D1@8FPS; D1@15FPS; |
| Recording method | Manual, programmed, motion detection |
| Internal memory | 1 HDD SATA 3.5" of up to 6TB (not included) |
| External interface | 2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet) / RS485 |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power | DC 12V / 8W |
| Dimensions / Weight | 46 (H) x 260 (W) x 243 (D) mm / 1 kg |
