I-HABC-2005PI-LC

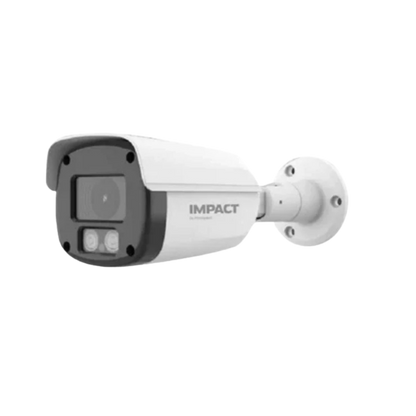

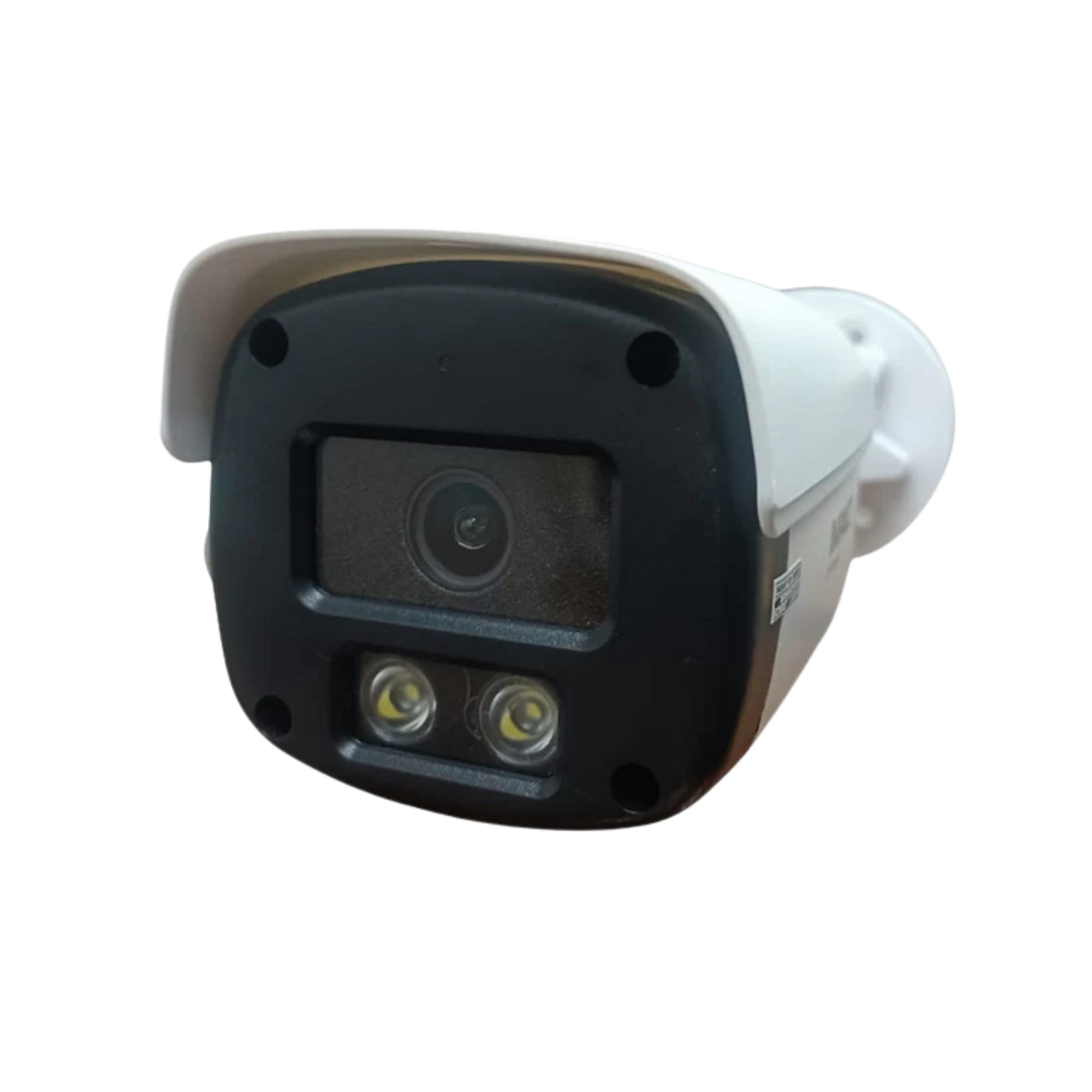

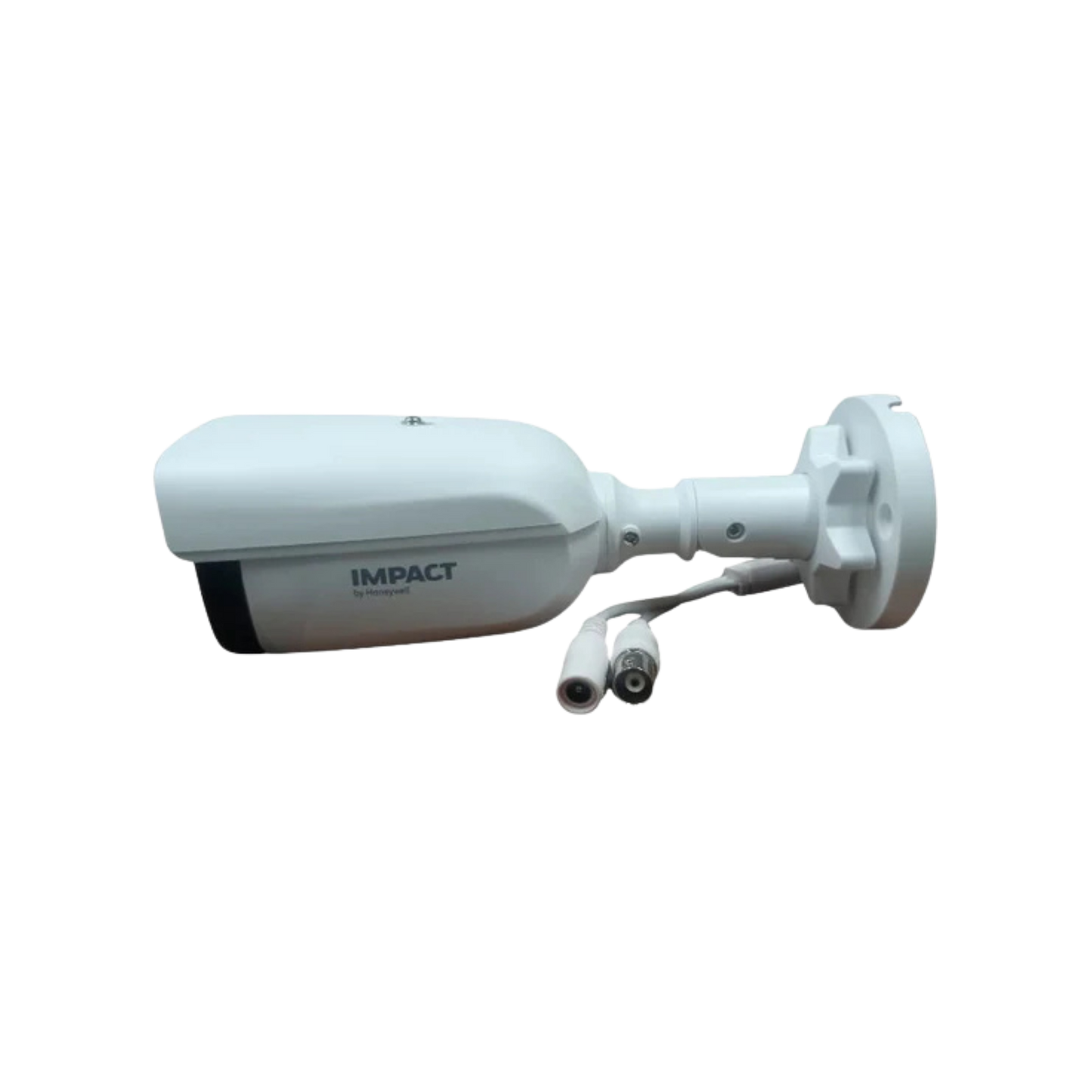

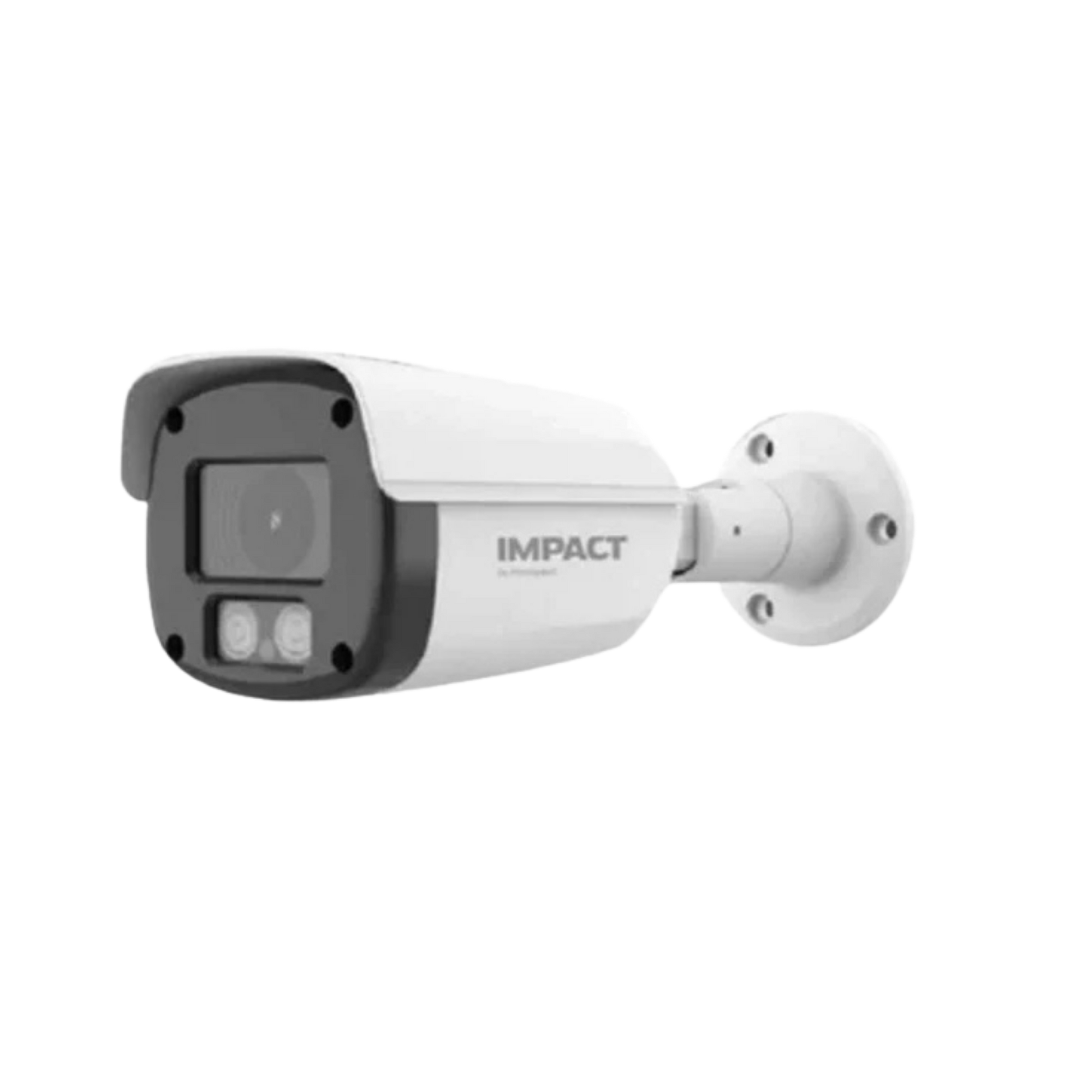

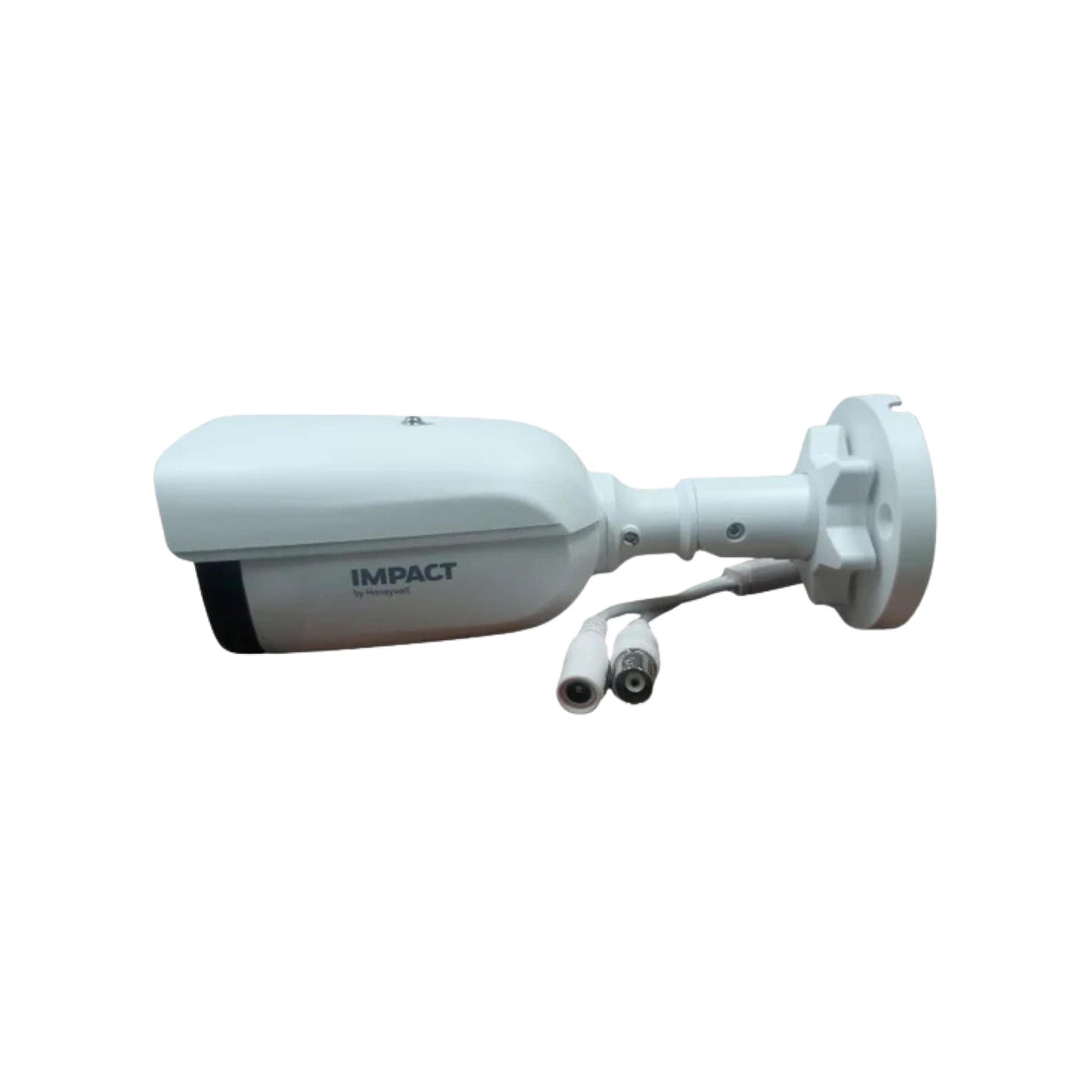

2MP AHD Color Vision Bullet Camera

FEATURES AND BENEFITS
• 1/2.9” 2 MP
Hi-Resolution
Image Sensor
• Progressive
Scanning
• Supports ultralow illumination
• 1080P
Resolution with
HD Technology
• Long distance
real-time
transmission
• 3.6 mm Lens, 2
Mega Pixel Lens
• Range 10-20m • OSD Control 4
IN 1 OUTPUTS
(AHD-TVICVI-CVBS)

MATERIAL SPECIFICATIONS

SIGNAL SYSTEM : PAL
IMAGE SENSOR : 1/2.9” 2 MP Hi-Resolution Image Sensor
EFFECTIVE PIXEL : 1920(H)x1080(V)
HORIZONTAL RESOLUTION : 1080P @25FPS
LED 2pcs White LED, Range : 10-20Mtr.
LENS FURNISHED : 3.6mm
LENS INTERFACE : M12
SIGNAL/NOISE RATIO :≥55dB
SHUTTER CONTROL 1/50 sec to 1/50,000 sec
MIN ILLUMINATION 0.001Lux @ (F1.2, AGC ON)
SYNCHRONISATION : Internal
WHITE BALANCE : Auto/ Manual
BACK LIGHT COMPENSATION : Auto/ Manual
GAIN CONTROL : Auto/ Manual
VIDEO OUTPUT SIGNAL : HD Analog Output
TRANSMISSION DISTANCE Up to 500m over coaxial cable
COAXIAL OSD CONTROL 4 IN 1 Outputs (AHD-TVI-CVI-CVBS)
