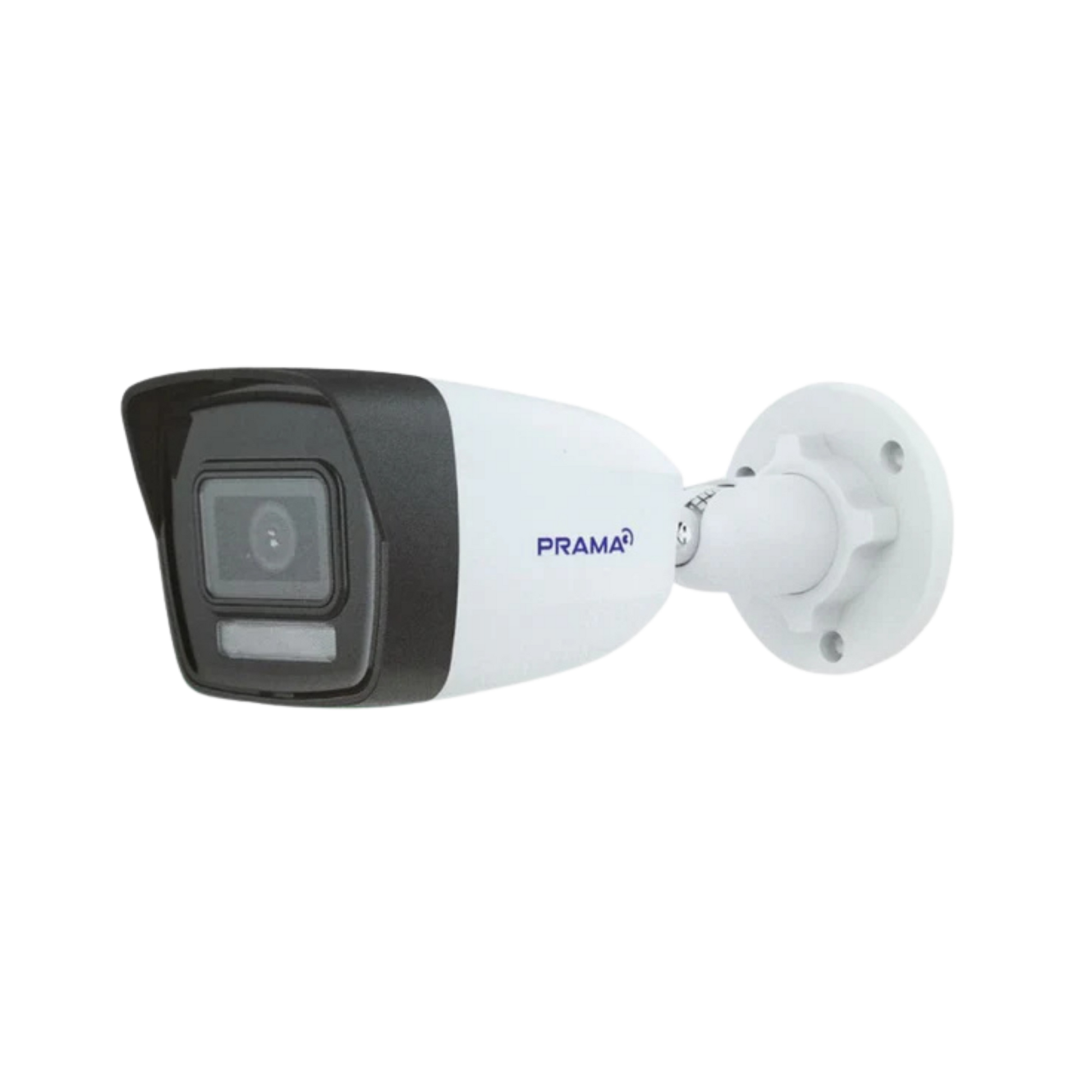

CAMERA BULLET IP 4 M.P PRAMA (PT-NC140D3-LIU(D2))

PT-NC140D3-LIU(D2) 4 MP Fixed Bullet Network Camera

The CAMERA BULLET IP 4 M.P PRAMA (PT-NC140D3-LIU(D2)) delivers high-resolution 4-megapixel video for clear and detailed surveillance. Designed for professional security applications, this IP bullet camera offers reliable performance with advanced imaging technology, ensuring precise monitoring in various environments. Its robust build and easy network integration make it an ideal choice for enhancing security systems with superior image quality and dependable operation.

 High quality imaging with 4 MP resolution
 Support Human and Vehicle Detection
 Smart Hybrid Light: advanced technology with long range
 Built-in microphone for real-time audio security
 Efficient H.265+ compression technology
 Water and dust resistant (IP67)

Specification

Camera
Image Sensor 1/3 inch Progressive Scan CMOS
Max. Resolution 2560 × 1440
Shutter Time 1/3 s to 1/100,000 s
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
DORI
DORI 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream
50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Region of Interest (ROI) 1 fixed region for main stream
Audio
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps
(G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Network
Security Password protection, complicated password, watermark, basic and digest
authentication for HTTP, security audit log, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API ISAPI, SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host Up to 32 users
3 user levels: administrator, operator, and user
Client PRAMA VMS Standard, PRAMA-ONLINE
Web Browser Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance,
adjustable by client software or web browser
Privacy Mask 4 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone Yes
